BOOST THE EFFICIENCY
OF YOUR MEETINGS

Boost the efficiency
of your meetings

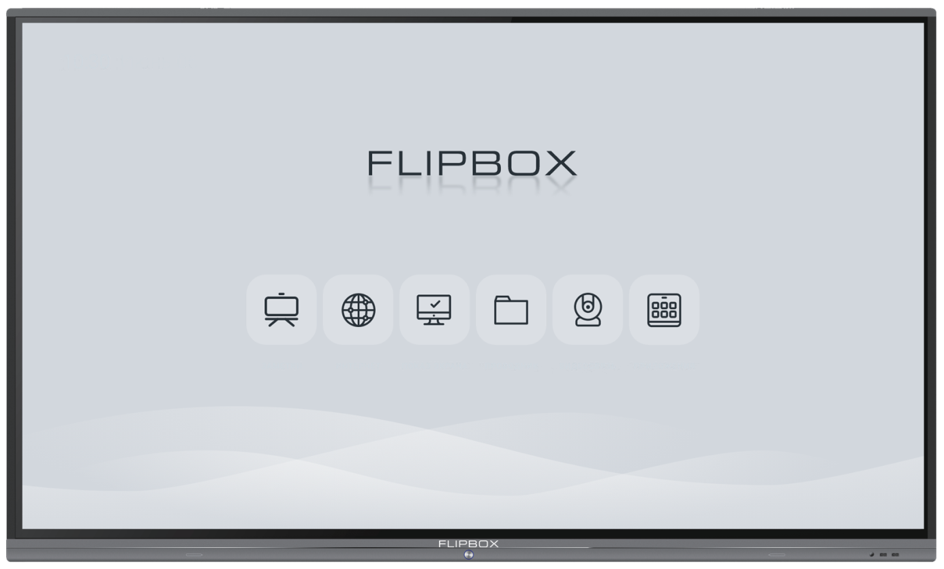

Flipbox is the unique all-in-one touch screen solution for meeting rooms and conference halls

Meetings, presenting and using an interactive screen has never been so easy! Engage your audience, capture notes and discuss ideas. With Flipbox you can sketch, present documents, browse the Internet, wirelessly display a laptop or a tablet screen, set-up videoconferencing to connect with partners, clients and colleagues across the globe.

Flipbox is perfect for BYOD collaboration. Each participant of your meeting can display the screen of their personal device (laptop, tablet or phone) on Flipbox in a matter of seconds. Share the content of your laptop or mobile device on Flipbox without connecting any wires.

Package contents

Interactive LCD touch screen with 4K resolution.
Video camera is available as an option.
Flipbox Software Suite.
Windows PC is available as an option.
Multi-touch (20 touches)
Wi-Fi & Bluetooth
Anti-glare glass
Plug & Play
Integrated high-quality speaker system
Palm detection
Multi-user mode with detection of individual styluses

FLIPBOX
SYSTEM CAPABILITIES

Diagonal Size (inch)
Backlight
Aspect Ratio
Resolution
Response Time
Display Frame Rate
Brightness
Contrast Ratio
Viewing Angel
Display Orientation
Type
Interface
Touch Points
Glass
Supported Operation Systems
Operating System
CPU
GPU
RAM
Storage
Wi-Fi Enabled
Bluetooth
Built-in Speakers
Interface
HDMI2.0 OUT x1, HDMI2.0 IN x3, VGA IN x1, AUDIO IN x1, AUDIO OUT x1, SPDIF x1, Front USB2.0 Type A x2, Back USB2.0 Type A x1, Back USB3.0 Type A x3, USB2.0 Type B (Touch) x2, LAN (RJ45) x1, RS232 x1 | ПК: DP OUT x1, HDMI2.0 OUT x1, VGA Out x1, USB2.0 Type A x2, USB3.0 Type A x4, USB3.1 Gen2 Type-C x1, AUDIO IN x1, AUDIO OUT x1, LAN (RJ45) x1
Dimensions (mm)
Weight Net / Gross (kg)
VESA
Standby
Maximum power consumption (W)
Remote control, AC Power Cord, Touch Pen (3), Quick Start Guide, Manual, Warranty Card, WiFi module, USB Cable (3000 mm), VGA Cable (3000 mm), Audio Cable (3000 mm), HDMI Cable (3000 mm)
DISPLAY
TOUCH SYSTEM
COMPUTER SYSTEM (BUILD-IN) WINDOWS | ANDROID
AUDIO
CONNECTIVITY
DIMENSIONS
POWER
ACCESSORIES
55 inch
65 inch
75 inch
86 inch
98 inch
D-LED
16:9
4K Ultra HD, 3840х2160
<8 ms
60Hz
350 cd/m²
1500:1
178 °/ 178 °
Landscape
IR
USB 2.0
20
4 mm Tempered Anti-glare
Windows 7, 8, 10; Mac OSX and Linux
Windows 10 | Android 8.0
8th Generation Intel® Core | Dual core A73+Dual core A53
Intel UHD Graphics 630 | Mali-450x5 (98" — Quad core Mali G51)
4 Gb DDR4 | 4 Gb (55", 98" — 3 Gb)
256 Gb | 32 Gb (55", 98" — 16 Gb)
802.11 A / B / G / N, 2.4-5 GHz | 802.11 A / B / G / N, 2.4 GHz
4.2
2 x 12 W
1269 х 773 х 86
26.8 / 34.4
400 x 200
1489 х 897 х 86
40.2 / 51.3
600 x 400
1710 х 1020 х 86
51.8 / 70.3
800 x 400
1957 х 1160 х 86
64.7 / 95.6
800 x 600
2244.7 х 1323 х 90.5
101.5 / 138.75
800 x 600
≤ 250
≤ 350
≤ 350
≤ 550
≤ 600
≤ 0.5
55"
65"
75"
86"
98"

SPECIFICATIONS

Accessories

Active Sound System
Connect
Microphone
Video camera
Mobile and wall mounting solutions
